Parameters
-100-277V
-Selectable current:1.0-1.2A
-27-40V
-PF≥0.9@277V
-EFF≥87%@277V
-Three in one dimming 0-10V&Resistance&PWM
-Isolated type,NO flicker,constant current design
-5 years warranty
Applications
-Commercial luminaries
-Office luminaries
-LED panel light
-LED down light
-LED linear light
-LED batten light
Model list
| Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| B.T131Y-XXXX | 13-60W | 100-277V | 27-40V | 500-1300mA | L317*W31*H23 mm | >0.9 | ≥87% |
| B.T113Y-XXXX | 13-73.5W | 100-277V | 27-40V | 500-1600mA | L317*W31*H23 mm | >0.9 | ≥87% |
Note: XXXX indicates the output current
About

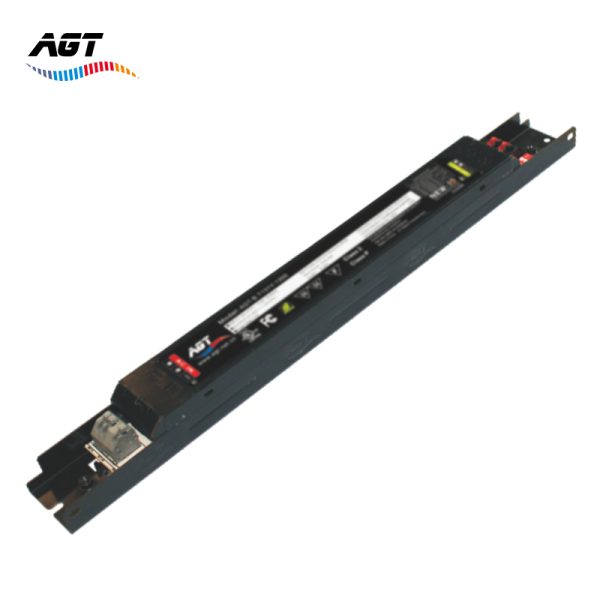

Black transformer, the first combined design of iron shell Led driver plus plastic end cap. Realized the free conversion of Class 1 and Class 2 Led driver. Breaking the restriction of the iron shell driver can not be externally placed.

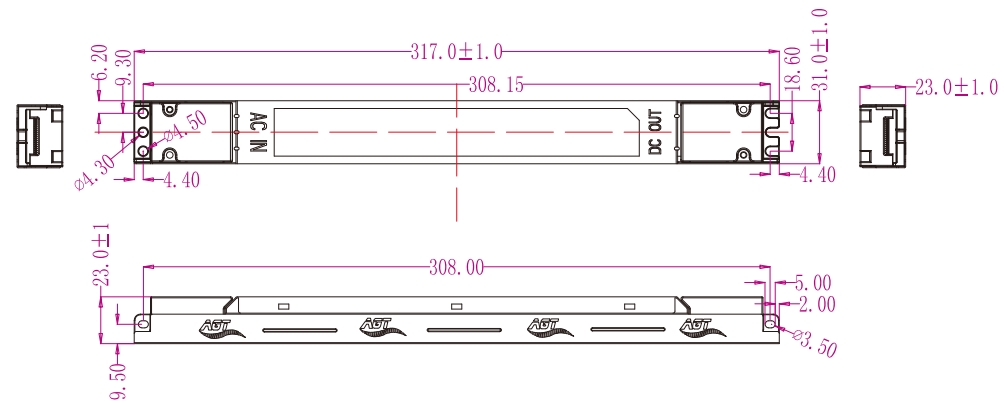

Dimensions
