Parameters
-5-40W
-220-240V
-30-40V
-PF>0.9@230V
-EFF≥88%@230V
-5 years warranty
Applications
-Office luminaries
-LED panel light
-LED down light
Model list
| Model | Input power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| AGT-FT40-1000 | 40W | 220-240V | 30-40V | 1.0A | L155*W55*H28mm | >0.9 | ≥88% |
| AGT-FT24-0600 | 24W | 220-240V | 30-40V | 0.6A | L155*W55*H28mm | >0.9 | ≥85% |
| AGT-FT15-0350 | 14W | 220-240V | 30-40V | 0.35A | L120*W50*H27mm | >0.9 | ≥78% |
| AGT-FT10-0250 | 10W | 220-240V | 30-40V | 0.25A | L128.6*W35.8*H22.5mm | >0.9 | ≥75% |
About
Global invention patented Led driver, each driver could be integrated with another. Majorly facilitate electrical wiring, save installation costs.
Dimensions

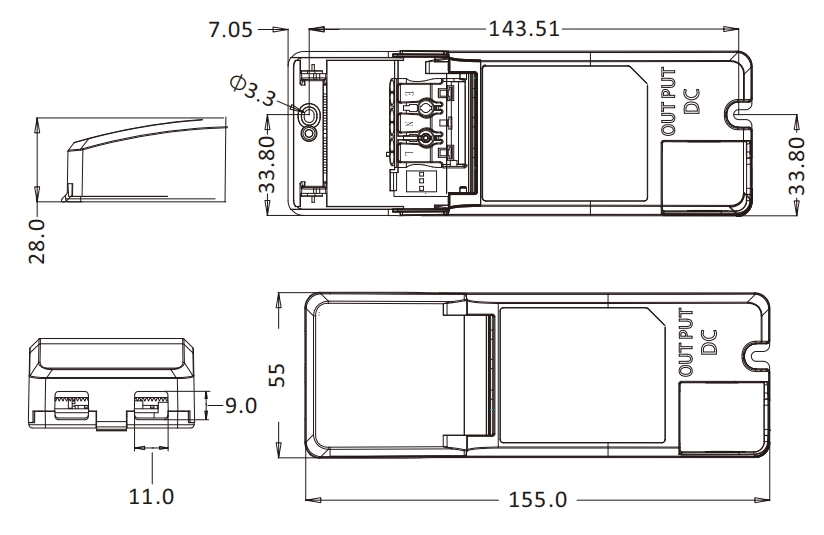

Model:AGT-FT40/AGT-FT24
Unit:mm

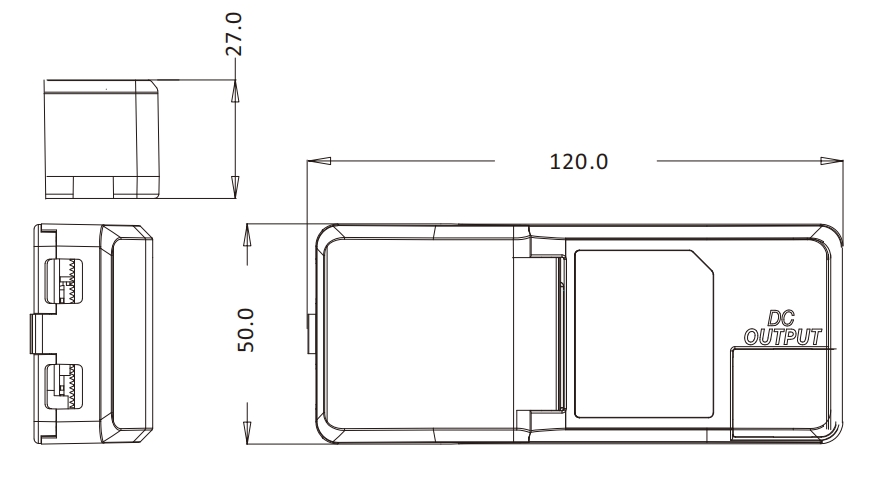

Model:AGT-FT15
Unit:mm

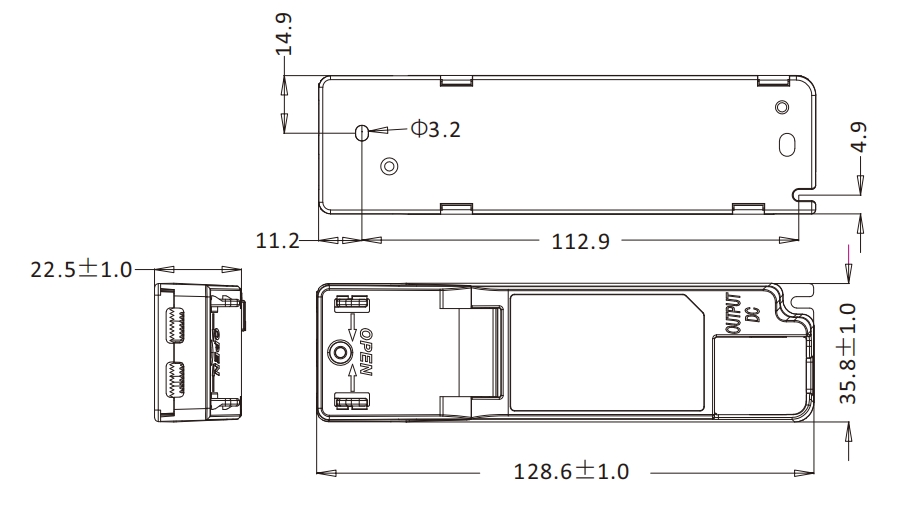

Model:AGT-FT10
Unit:mm
