Parameters
– 5-52W
– 9-40V
– 220-240V ac
– Surge protection 1KV
– Withstanding Voltage 3750Vac
– Operation Temp-20°C – 45°C
– PF>0.95,THD<15%
– Constant Power
– Standby power <0.5W
– Ta 45°C
Features
– Constant power output design
with wide operating window
– Support DALI-2 +push DIM
– DALl part 251,252,253(luminaire date,
energy reporting,diagnostic
and maintenance).
– The DC emergency mode adjusts the
current to 15%by default (adjustable).
– CLO+corridorDIM
– SCP/OCP/OVP/OTP
Model list
| Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| PM-DT6c52-1300 | 52W | 220-240V | 9-40V | 1.3A | L205.5*W70*H26mm | >0.95 | ≥86% |
| PM-DT6c45-1050 | 45W | 220-240V | 9-40V | 1.05A | L205.5*W70*H26mm | >0.95 | ≥86% |
| PM-DT6c24-600 | 24W | 220-240V | 9-40V | 0.6A | L189.5*W49*H26mm | >0.95 | ≥85% |
| About
Revolutionary LED Driver AGT proudly presents the Pro Max Series, a groundbreaking line of LED driver designed to redefine convenience, efficiency, and cost-effectiveness in the realm of lighting solutions. With a focus on innovation and user-friendly features, the Pro Max Series is set to revolutionize the LED driver market. Innovated function to meet the need of difference application: Standard, 3CCT, D4i+NFC, DALI Dim-D4i, DALI Dim-DT6, Triac Dim, Triac Dim-3CCT, Wireless Dimming + CCT, 0-10V Dim, Soft-start, Constant Voltage, Constant Current. |
|

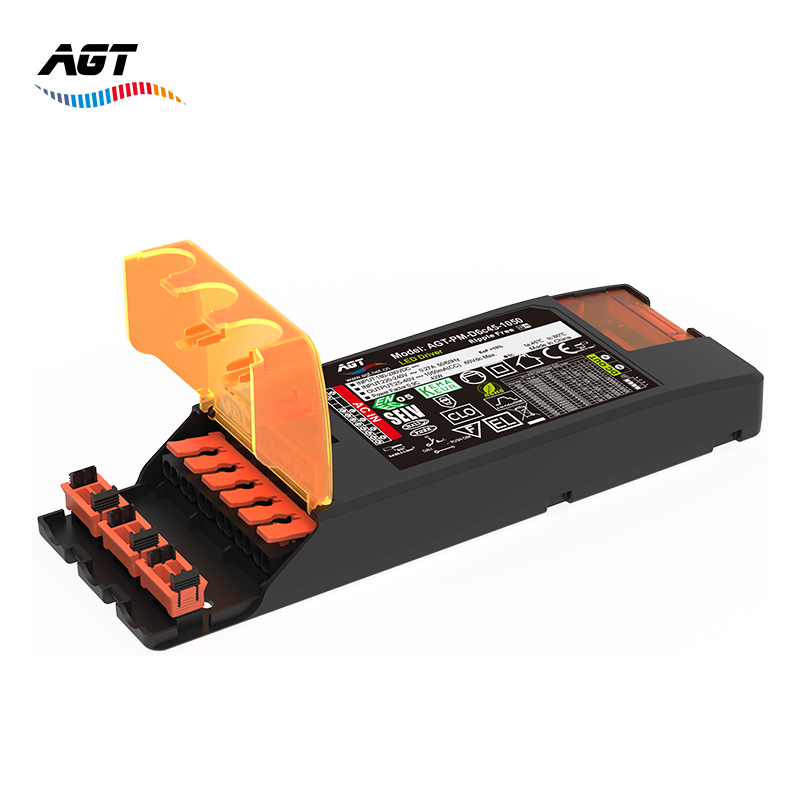

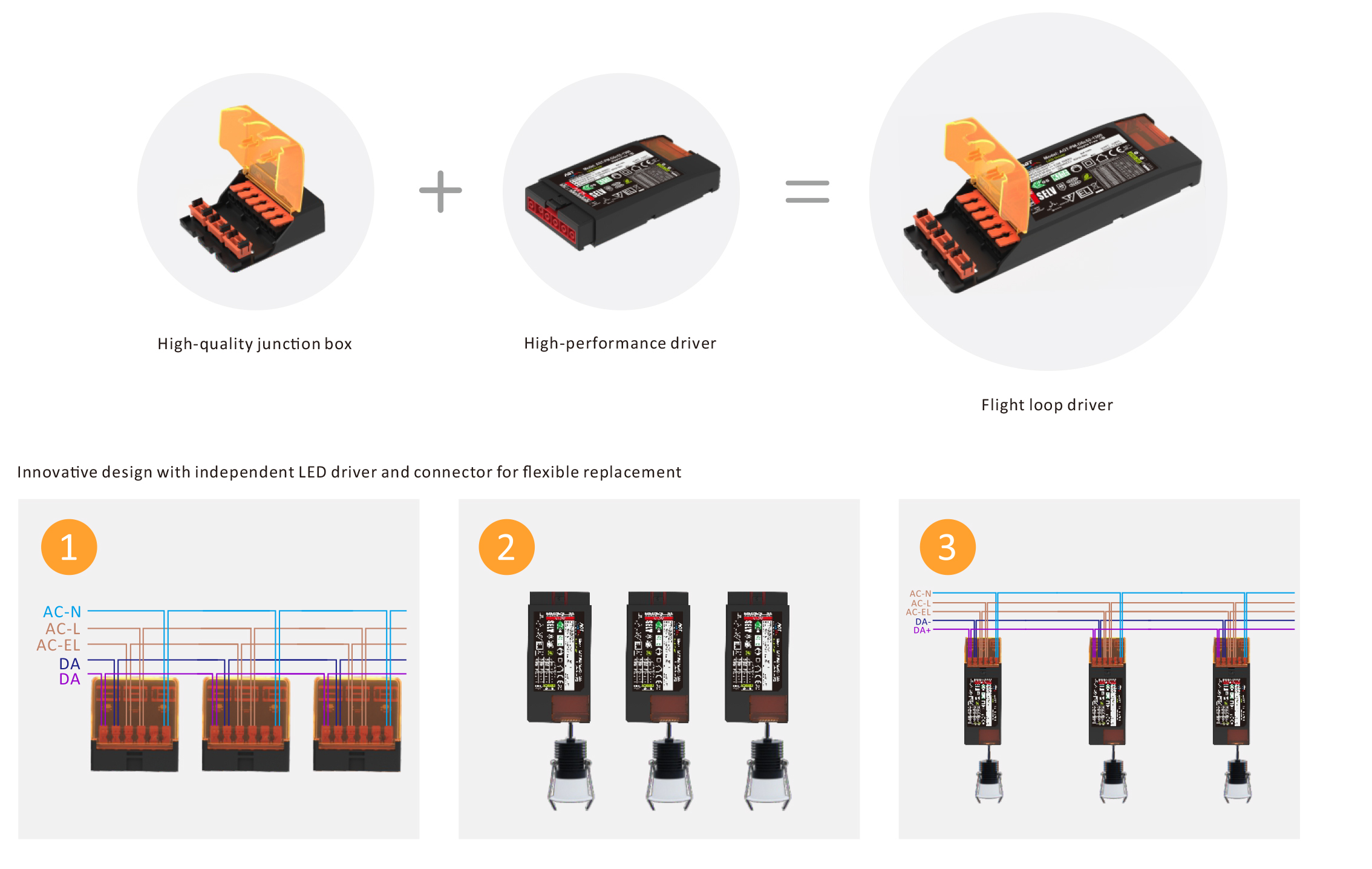

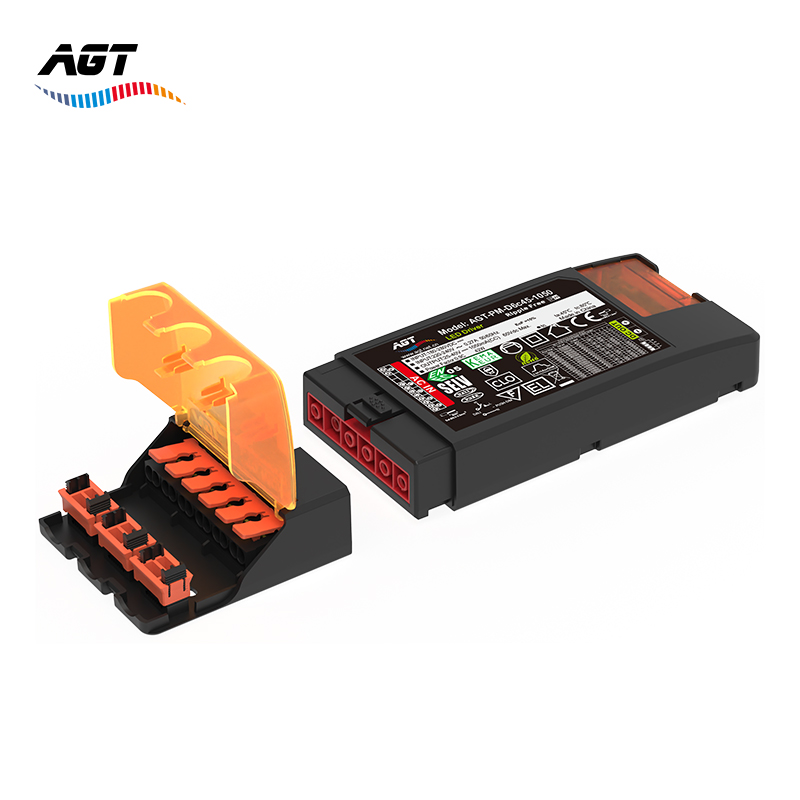

| – Plug-and-Play Design:
Features a user-friendly plug-and-play design with interchangeable wiring terminals, simplifying the installation process and reducing labor costs for electricians. – Cost-Effective Installation: Engineered to minimize installation expenses, the design of the Pro Max Series not only streamlines the power supply installation but also facilitates post-installation maintenance, resulting in overall cost savings. – Ease of Maintenance: The Pro Max Series ensures hassle-free maintenance, allowing for the swift replacement of the driver without the need to change wiring terminals. This feature minimizes downtime and enhances the longevity of your lighting system. – Versatility and Compatibility: In the event of a driver failure, the Pro Max Series offers the flexibility to replace it with a unit of different power ratings or functionalities, such as upgrading to a dimmable driver of the same size. This adaptability provides significant cost savings and customization options. |
– Wide Range of Applications:
The ProMax Series finds its application in a diverse range of LED lighting fixtures, including LED panel, LED downlights, LED spotlights, LED waterproof lights, and LED bracket lights. Its versatile compatibility makes it suitable for various lighting scenarios. – Global Patents and Innovation: Boasting global invention patents, the Promax Series stands as the world’s first of its kind. Our commitment to innovation ensures that you are investing in a product that is not only cutting-edge but also protected by intellectual property rights. – Five-Year Quality Assurance: As a testament to the durability and reliability of the Pro Max Series, we proudly offer a comprehensive 5-year warranty. Rest assured that your lighting infrastructure is supported by a product designed for long-term performance. |
| Experience the future of LED driver with the Pro Max Series-a symbol of innovation, versatility, and cost efficiency. Choose a lighting solution that not only illuminates but transforms the way we power our world. | |
Application scenarios
Parameter introduction
| Parameters
– 5-52W – 9-40V – 220-240V ac – Surge protection 1KV – Withstanding Voltage 3750Vac – Operation Temp-20°C – 45°C – PF>0.95,THD<15% – Constant Power – Standby power <0.5W – Ta 45°C |
Features
– Constant power output design with wide operating window – Support DALI-2 +push DIM – DALl part 251,252,253(luminaire date, energy reporting,diagnostic and maintenance). – The DC emergency mode adjusts the current to 15%by default (adjustable). – CLO+corridorDIM – SCP/OCP/OVP/OTP |
Benefits
– Innovative design – Flexible replacement – Versatility and Compatibility – Ease of Maintenance – 50,000 hours life time – 5 years warranty |
Applications
– Commercial luminaires – Office luminaries – LED panel light – LED down light – LED linear light – LED baƩ en light |
Details

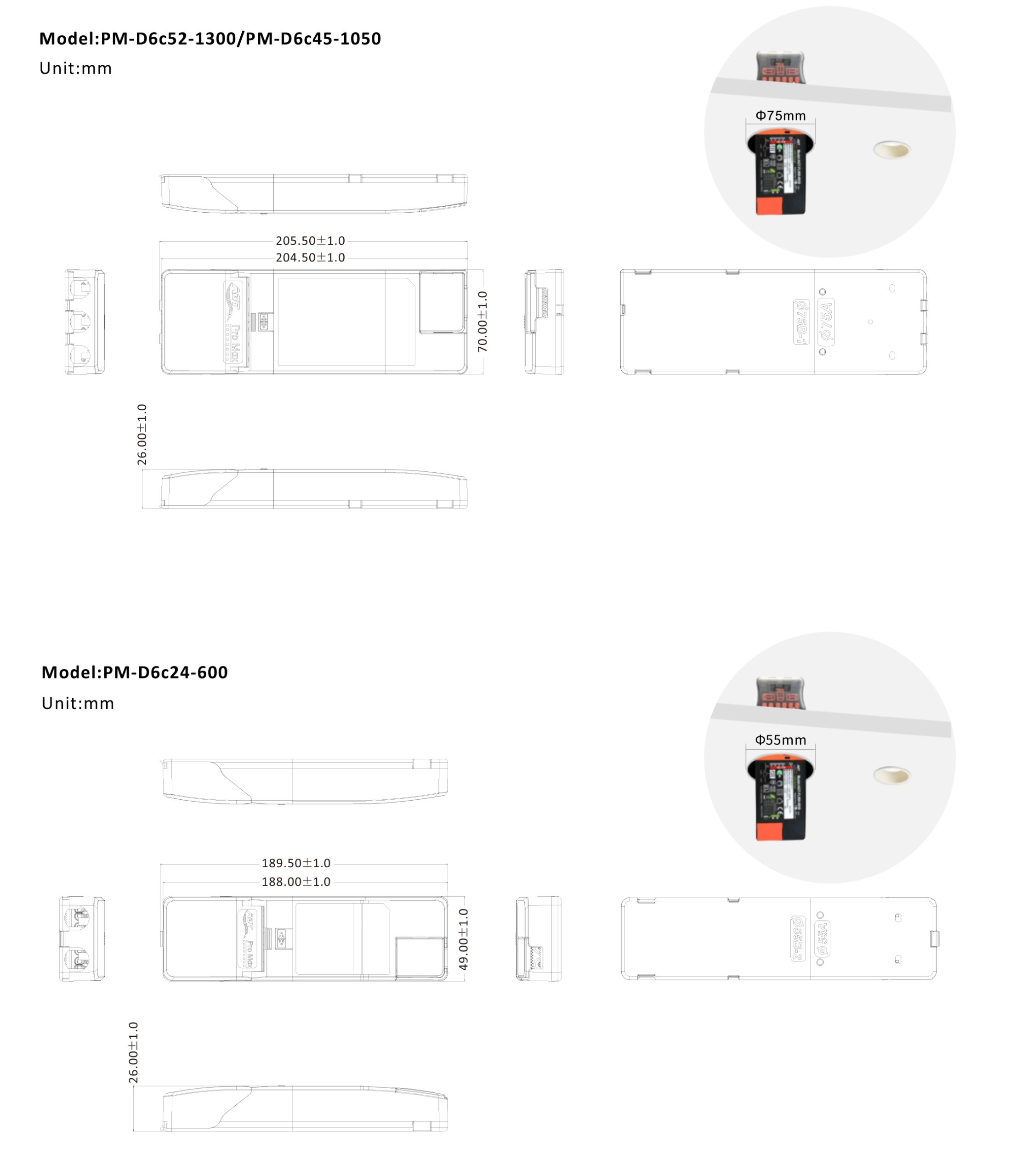

Dimensions
