Parameters
-8-60W
-220-240V
-80-170V
-PF>0.9
-EFF≥90%
-5 years warranty
– Office luminaries
– LED panel light
– LED down light
– LED linear light
– LED batten light
Model list
| Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| AGT-M3-N65-0350 | 59.5W | 220-240V | 80-170V | 0.35A | L172*W24*H20.5mm | >0.9 | ≥90% |
| AGT-M2E-N45-0350 | 44W | 220-240V | 60-125V | 0.35A | L154.5*W24*H20.5mm | >0.9 | ≥90% |
About

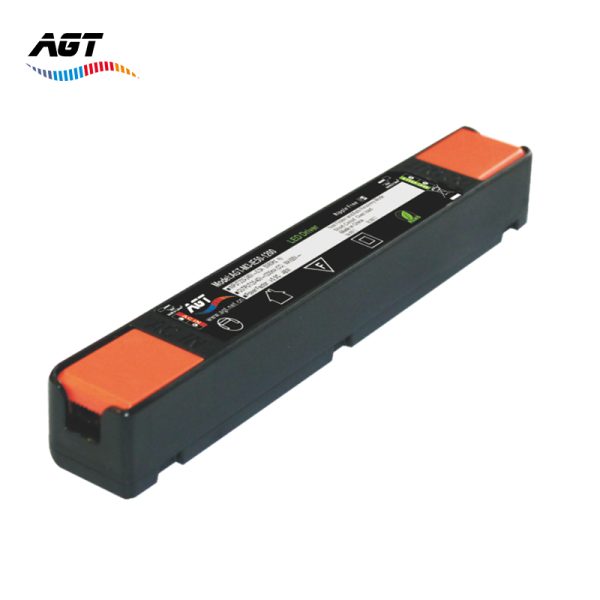

Long linear ultra-thin Led driver. Height of 20mm. Could be placed on the side of back lighting panel light and surface-mounted direct light luminaire to save packaging space.
Dimensions

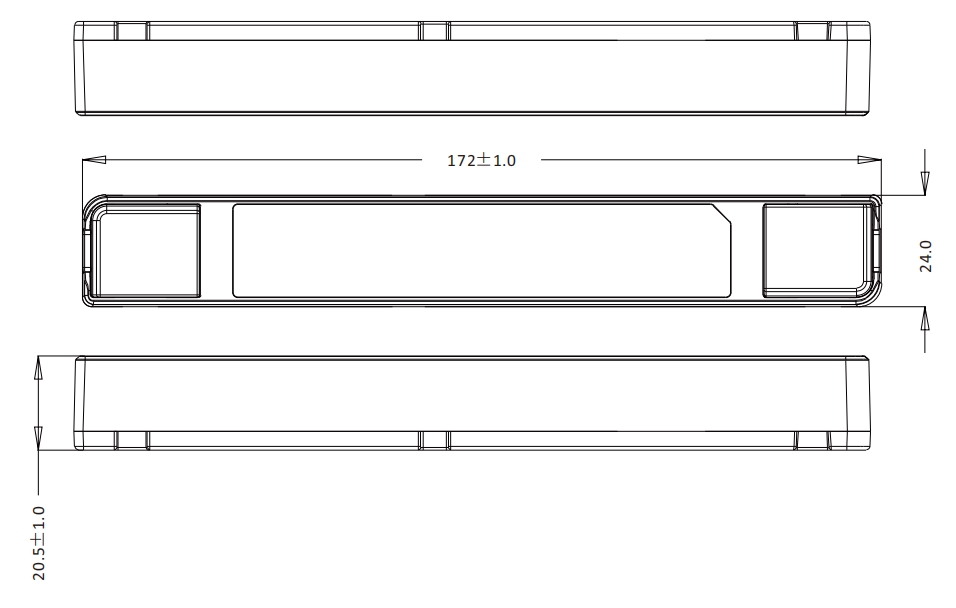

Model:AGT-M3-N65
Unit:mm

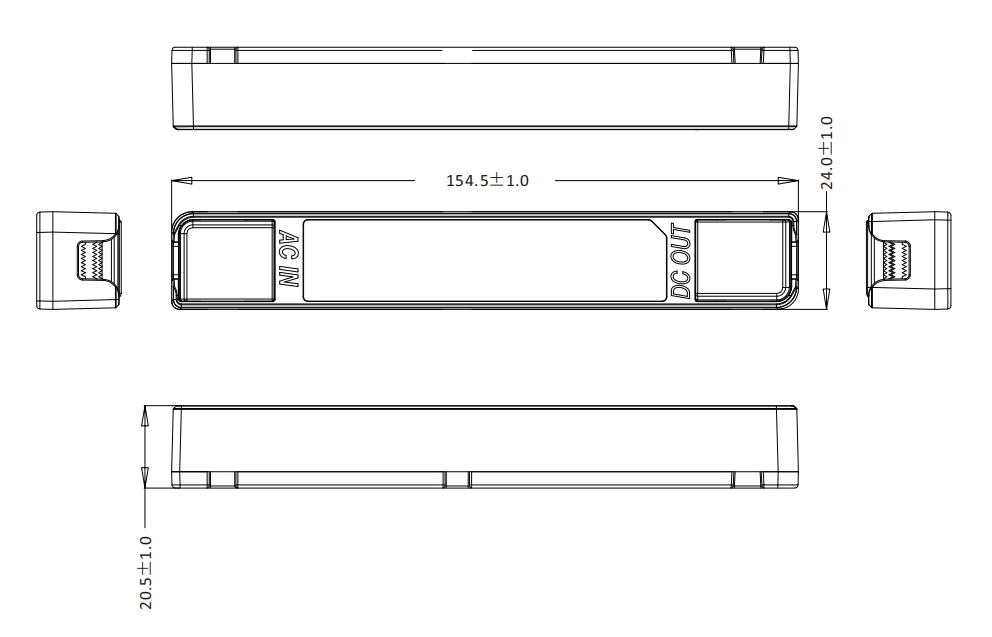

Model:AGT-M2E-N45
Unit:mm
