Parameters
-185-265VDC
-220-240VAC
-Selectable current:0.2-0.35A
-60-125V
-PF≥0.95@230V
-EFF≥91%@230V
-NonIsolated type,No flicker,constant current design
-5 years warranty
Applications
-Commercial luminaries
-Office luminaries
-LED panel light
-LED down light
-LED linear light
-LED batten light
Model list
| Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| B.TU-N45-0350 | 44W | 220-240V | 60-125V | 0.35A | L190*W31*H20 mm | >0.95 | ≥91% |
| B.TU-N65-0350 | 59.5W | 220-240V | 80-170V | 0.35A | L190*W31*H20 mm | >0.95 | ≥91% |
About

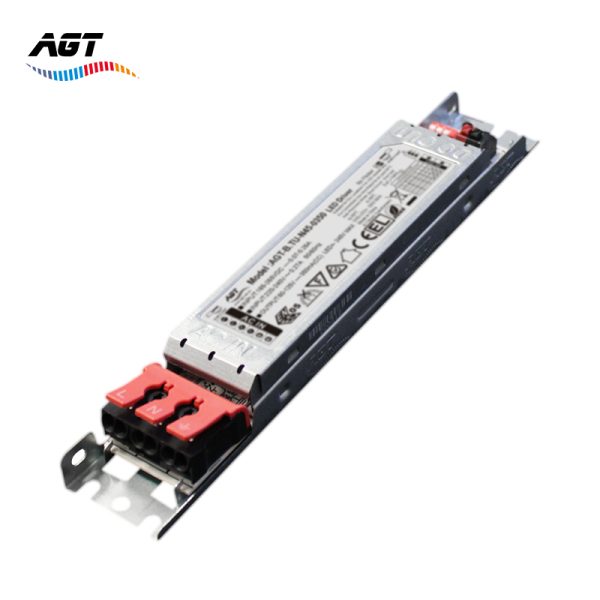

Black transformer, the first combined design of iron shell Led driver plus plastic end cap. Realized the free conversion of Class 1 and Class 2 Led driver. Breaking the restriction of the iron shell driver can not be externally placed.

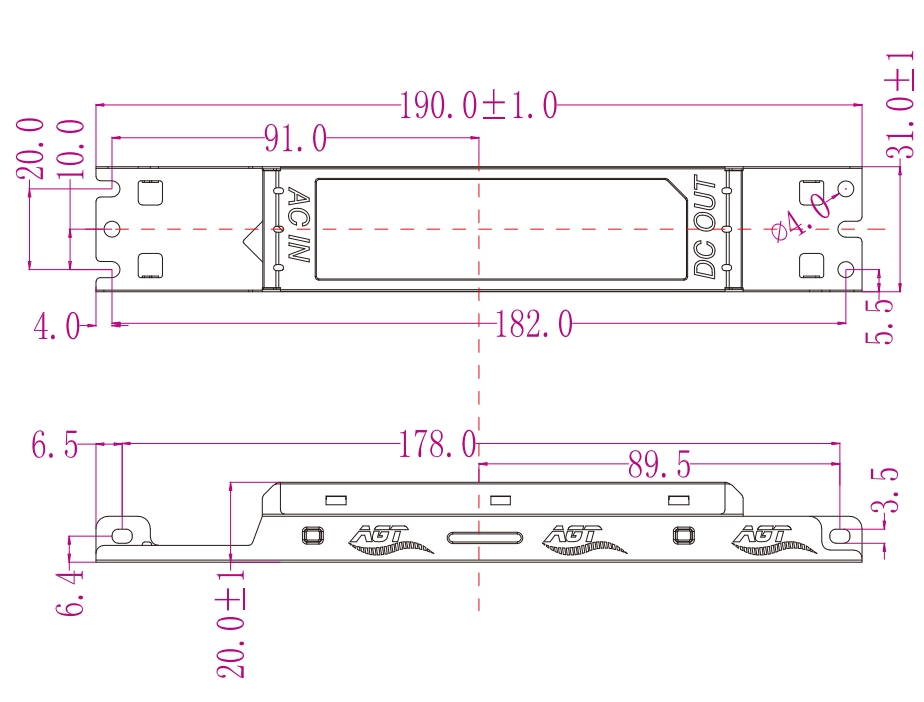

Dimensions
