Parameters
-100-277V
-Selectable current:1.12-1.24A
-40-49V
-PF＞0.9@277Vac
-EFF≥88%@277Vac
-Isolated type,constant current design
-5 years warranty
Applications
-Commercial luminaries
-Office luminaries
-LED panel light
-LED down light
-LED linear light
-LED batten light
Model list
| Model | Power | Input voltage | Output voltage | Output voltage | Dimension | PF | EFF |

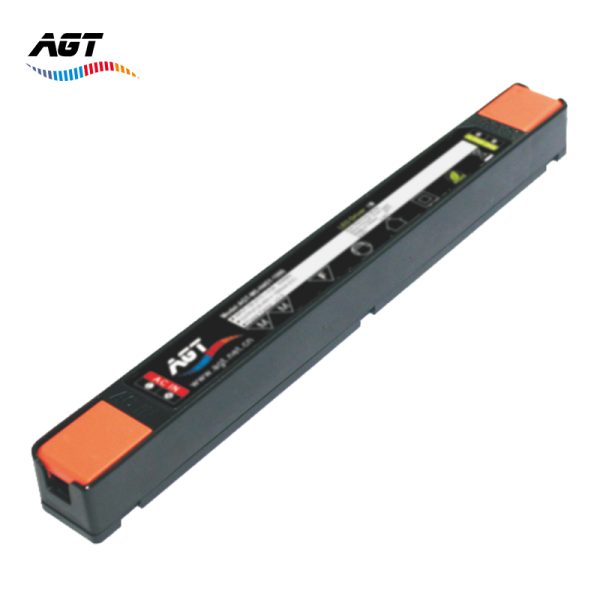

| M5-H60Y-1180 | 58W | 100-277VA | 40-49V | 1.18A | L218.5*W24*H20.5 mm | >0.9 | ≥88% |
About
Global invention patented Led driver, each driver could be integrated with another. Majorly facilitate electrical wiring, save installation costs.

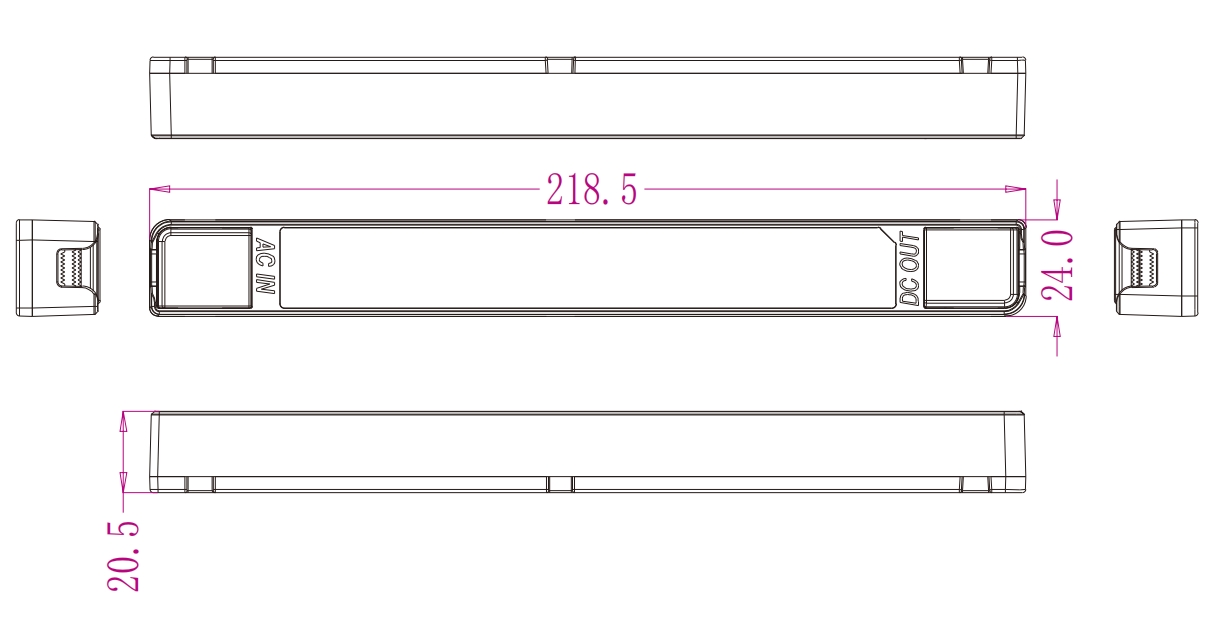

Dimensions
