Parameters
-220-240V
-Selectable current:0.494-0.546A
-36-45V
-PF>0.95@230V
-EFF≥91%@230V
-Isolated type,NO flicker,constant current design
-5 years warranty
Applications
-Commercial luminaries
-Office luminaries
-LED panel light
-LED down light
-LED linear light
-LED batten light
Model list
| Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| M2E.-XXXX | 17-27.5W | 220-240V | 25-40V | 300-680mA | L154.5*W24*H20.5 mm | >0.9 | ≥91% |
| M2F-I35-XXXX | 10-35W | 220-240V | 36-45V | 300-700mA | L154.5*W24*H20.5 mm | >0.9 | ≥91% |
Note: XXXX indicates the output current
About

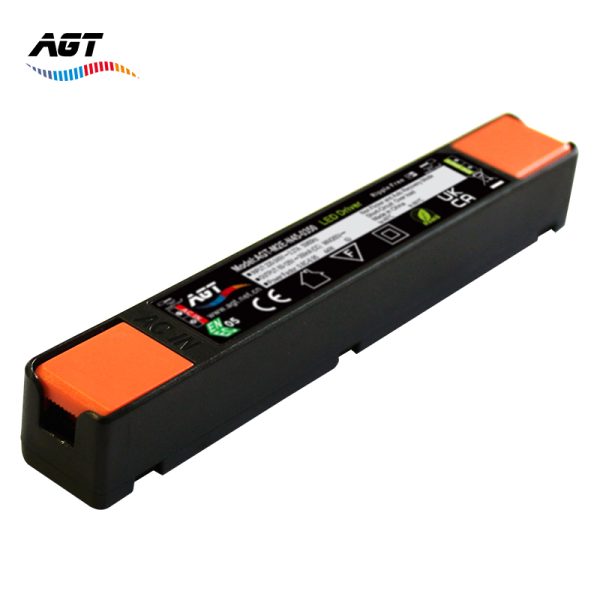

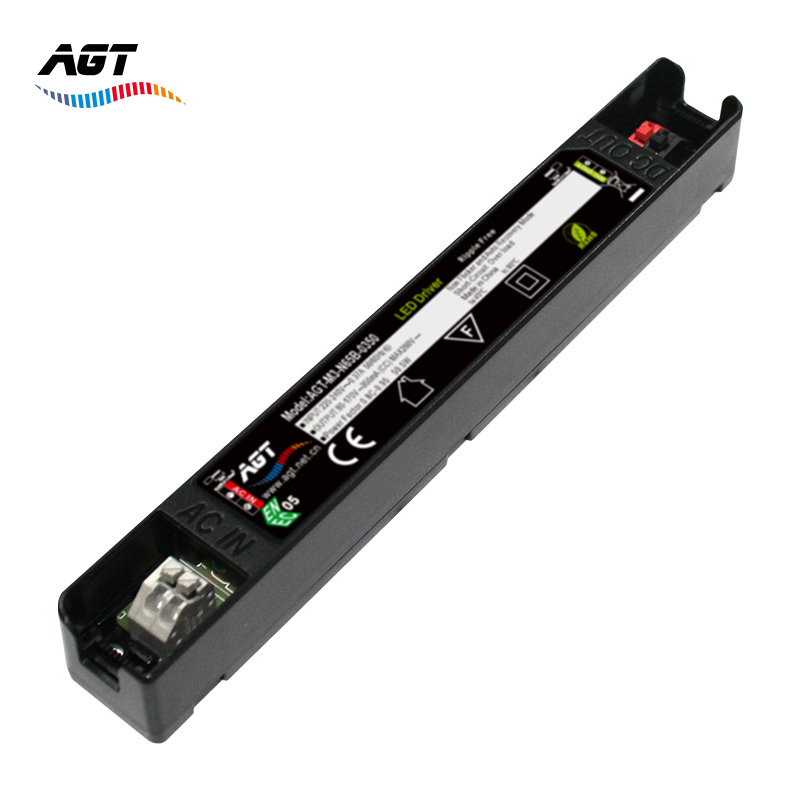

Long linear ultra-thin Led driver. Height of 20mm. Could be placed on the side of back lighting panel light and surface-mounted direct light luminaire to save packaging space.

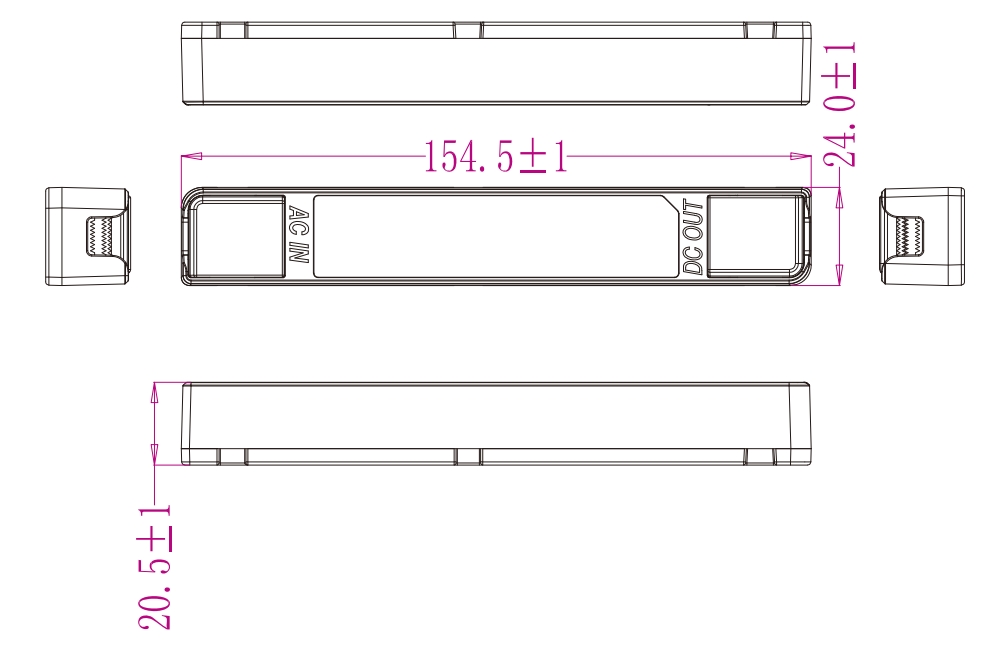

Dimensions
