Parameters
-220-240V
-Selectable current:0.997-1.103A
-25-38V
-PF＞0.9@230Vac
-EFF≥88%@230Vac
-Isolated type,No flicker,constant current design
-5 years warranty
Applications
-Commercial luminaries
-Office luminaries
-LED panel light
-LED down light
-LED linear light
-LED batten light
Model list
| Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| M2EC-1050 | 40W | 220-240V | 25-38V | 1.05A | L172*24*20.5 mm | >0.9 | ≥88% |
About
Global invention patented Led driver, each driver could be integrated with another. Majorly facilitate electrical wiring, save installation costs.

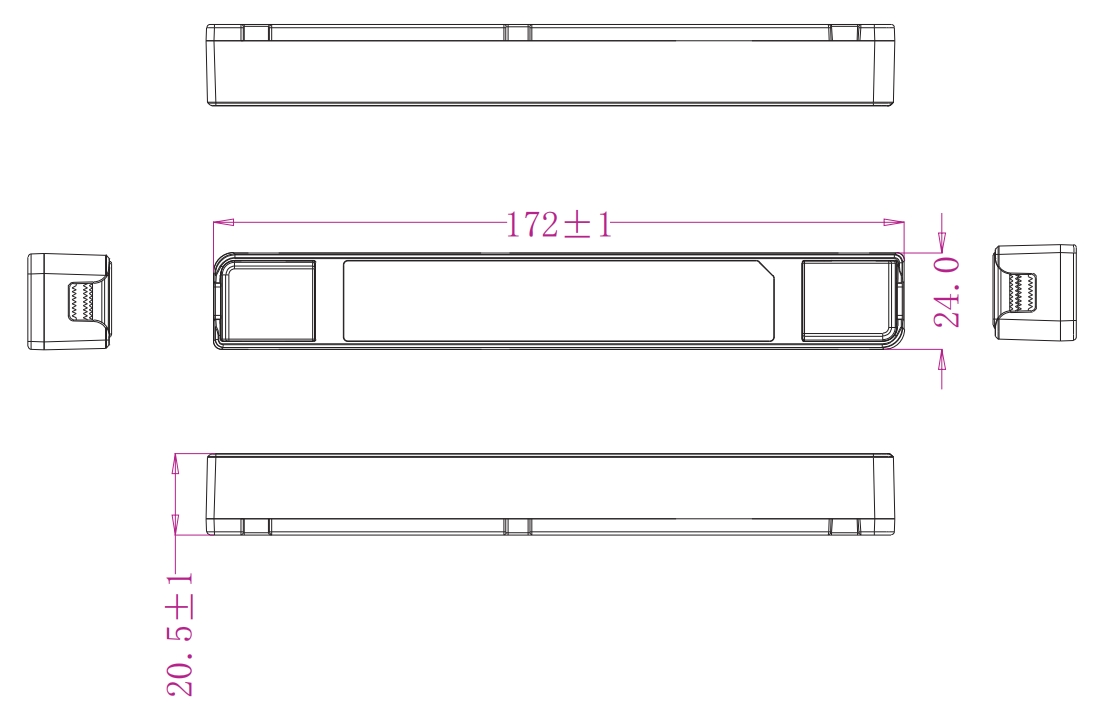

Dimensions
