Parameters
-8-55W
-220-240V
-25-40V
-PF>0.9
-EFF≥88%
-5 years warranty
– Office luminaries
– LED panel light
– LED down light
– LED linear light
– LED batten light
Model list
| Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| AGT-M2E-1000 | 40W | 220-240V | 25-40V | 1.0A | L154.5*W24*H20.5mm | >0.9 | ≥88% |
| AGT-M5-I50-1200 | 48W | 220-240V | 25-40V | 1.2A | L218.55*W24.05*H20.30mm | >0.9 | ≥88% |
| AGT-M5-I60-1100 | 55W | 220-240V | 36-50V | 1.1A | L218.55*W24.05*H20.30mm | >0.9 | ≥88% |
About

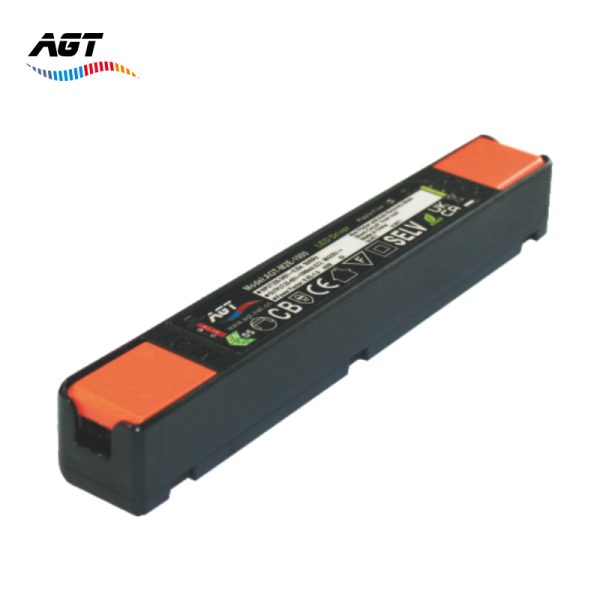

Long linear ultra-thin Led driver. Height of 20mm. Could be placed on the side of back lighting panel light and surface-mounted direct light luminaire to save packaging space.
Dimensions

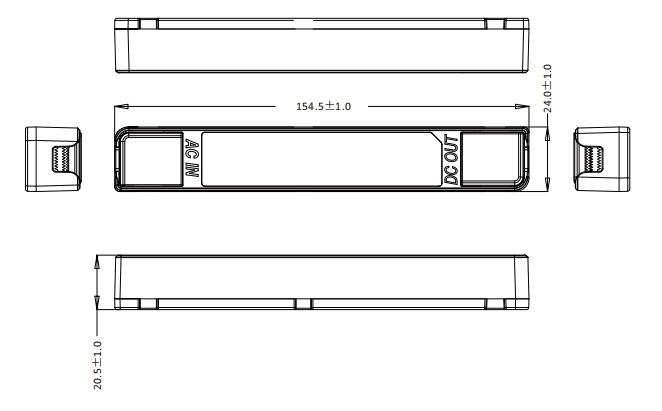

Model:AGT-M2E
Unit:mm

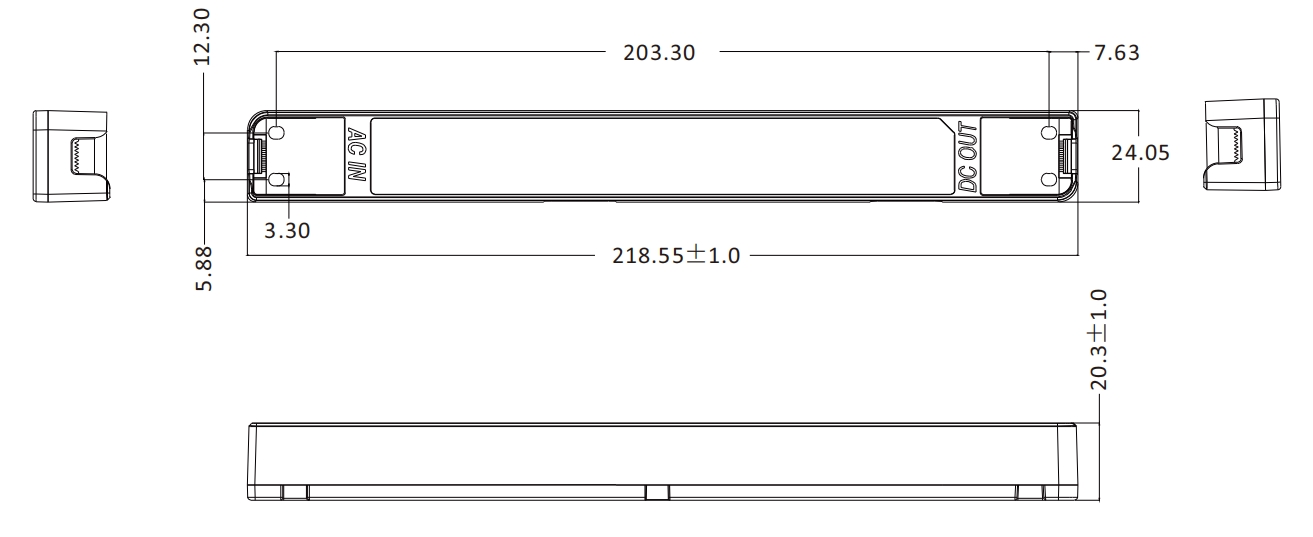

Model:AGT-M5-I50/AGT-M5-I60
Unit:mm
