Parameters
-220-240V
-Selectable current:0.6-0.8A
-25-40V
-PF>0.95@230V
-EFF≥88%@230V
-Isolated type,No flicker,constant current design
-5 years warranty
Applications
-Commercial luminaries
-Office luminaries
-LED panel light
-LED down light
-LED linear light
-LED batten light
Model list
| Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| M2C-0800 | 32W | 220-240V | 25-40V | 0.8A | L202.5*W24*H20.5 mm | >0.95 | ≥88% |
About

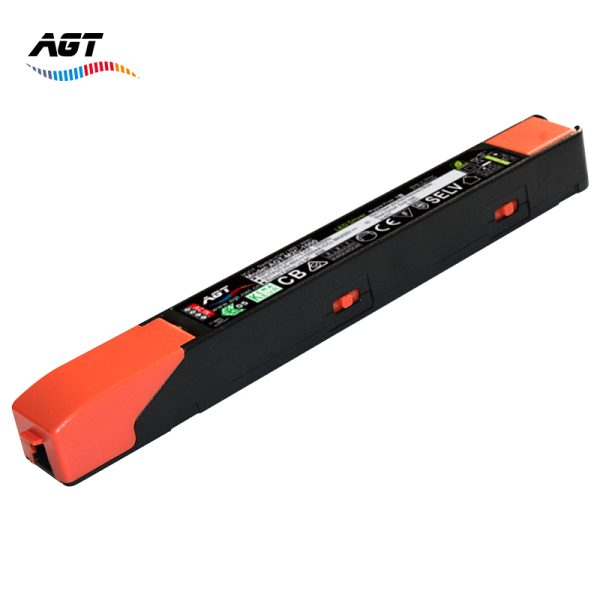

Long linear ultra-thin Led driver. Height of 20mm. Could be placed on the side of back lighting panel light and surface-mounted direct light luminaire to save packaging space.

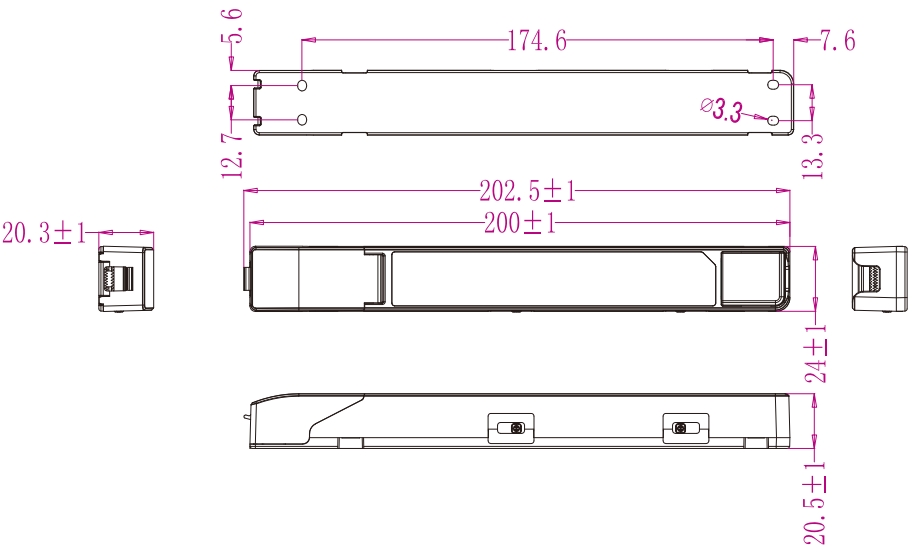

Dimensions
