Parameters
-8-48W
-100-240V
-25-40V
-PF>0.9
-EFF≥88%
-5 years warranty
– Office luminaries
– LED panel light
– LED down light
– LED linear light
– LED batten light
Model list
| Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| AGT-M2E-I45X-1000 | 40W | 100-240V | 25-40V | 1.0A | L154.5*W24*H20.5mm | >0.9 | ≥88% |
| AGT-M3-I50-1200 | 48W | 220-240V | 25-40V | 1.2A | L172.5*W24*H16.3mm | >0.9 | ≥88% |
About

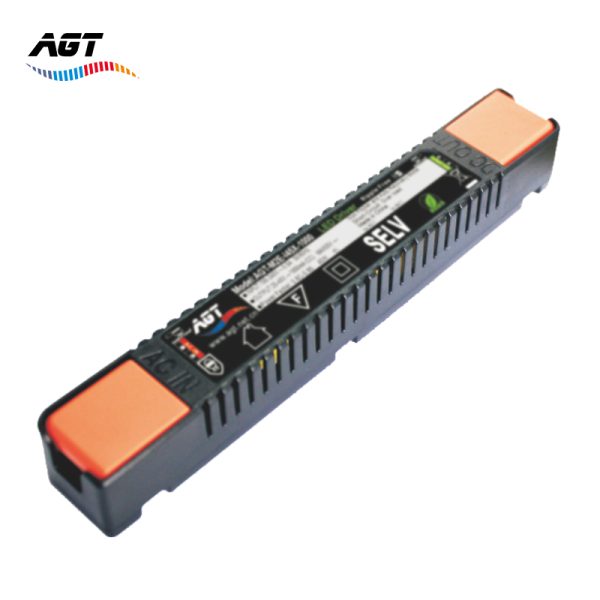

Long linear ultra-thin Led driver. Height of 20mm. Could be placed on the side of back lighting panel light and surface-mounted direct light luminaire to save packaging space.
Dimensions

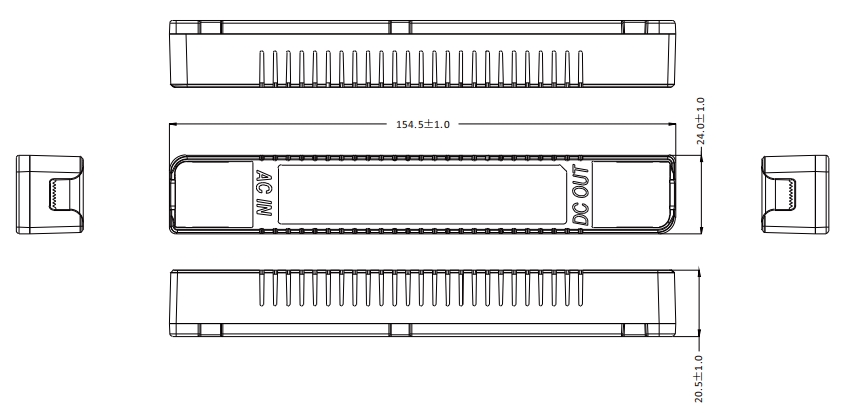

Model:AGT-M2E-I45X
Unit:mm

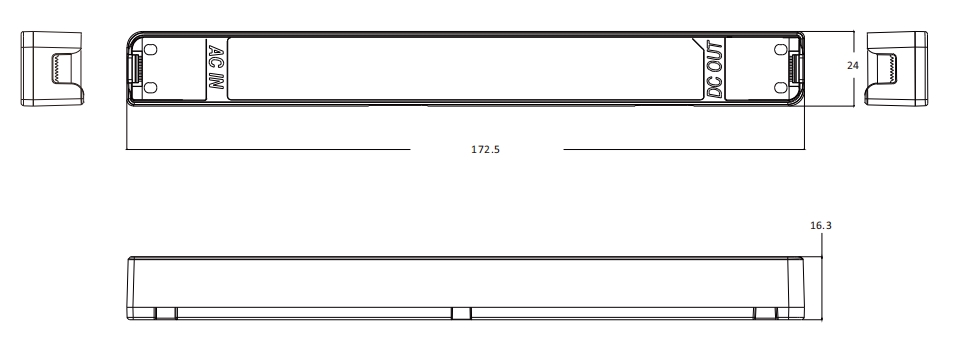

Model:AGT-M3-I50
Unit:mm
