Parameters
-8-40W
-220-240V
-25-40V
-PF>0.95
-EFF≥88%
-5 years warranty
– Office luminaries
– LED panel light
– LED down light
– LED linear light
– LED batten light
Model list
| Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| AGT-M2-1000 | 40W | 220-240V | 25-40V | 1.0A | L202.5*W24*H20.5mm | >0.95 | ≥88% |
| AGT-M2H-0600 | 24W | 220-240V | 25-40V | 0.6A | L202.5*W24*H20.5mm | >0.95 | ≥85% |
About

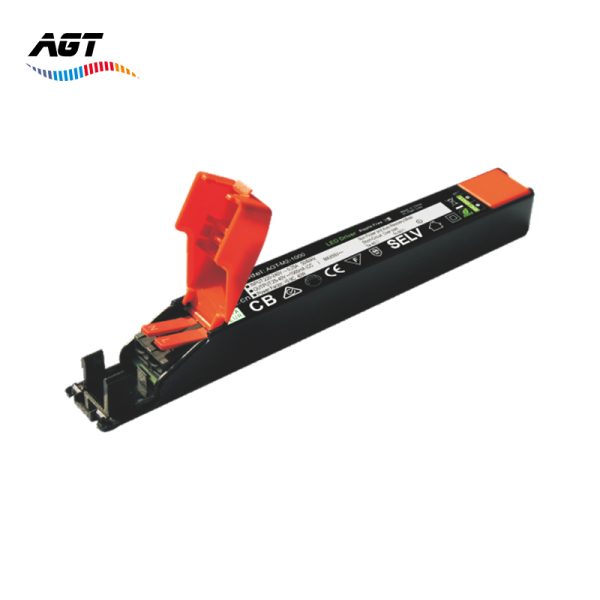

Long linear ultra-thin Led driver. Height of 20mm. Could be placed on the side of back lighting panel light and surface-mounted direct light luminaire to save packaging space.

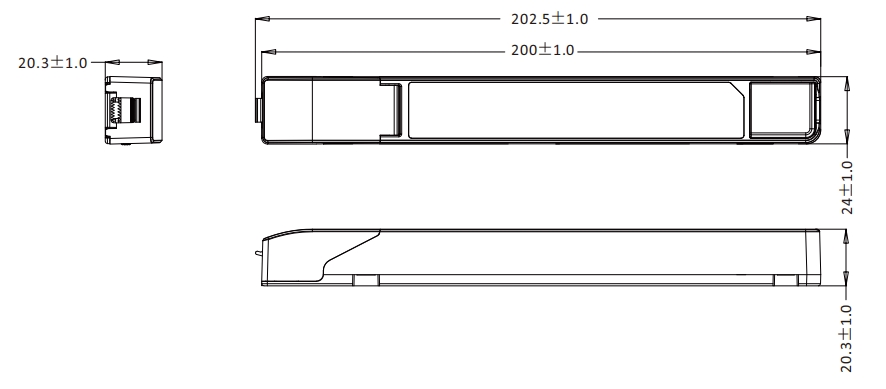

Dimensions
Model:AGT-M2/AGT-M2H
Unit:mm
