Parameters
-8-60W
-220-240V
-25-40V
-PF>0.95@230V
-EFF≥89%@230V
-5 years warranty
Applications
-Office luminaries
-LED panel light
-LED down light
Model list
| Model | Input power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| AGT-FL711-1500 | 60W | 220-240V | 25-40V | 1.5A | L155*W55.5*H28mm | >0.95 | ≥89% |
| AGT-FL710-1200 | 48W | 220-240V | 25-40V | 1.2A | L155*W55.5*H28mm | >0.95 | ≥88% |
| AGT-FL613G..-1000 | 40W | 220-240V | 25-40V | 1.0A | L120*W50*H27mm | >0.9 | ≥88% |
| AGT-FL613G..-0700 | 28W | 220-240V | 25-40V | 0.7A | L120*W50*H27mm | >0.9 | ≥88% |
| AGT-FL101-0550 | 22W | 220-240V | 25-40V | 0.55A | L128.6*W35.8*H22.5mm | >0.9 | ≥85% |
| AGT-FL100-0350 | 14W | 220-240V | 25-40V | 0.35A | L128.6*W35.8*H22.5mm | >0.9 | ≥82% |
About
Global invention patented Led driver, each driver could be integrated with another. Majorly facilitate electrical wiring, save installation costs.
Dimensions

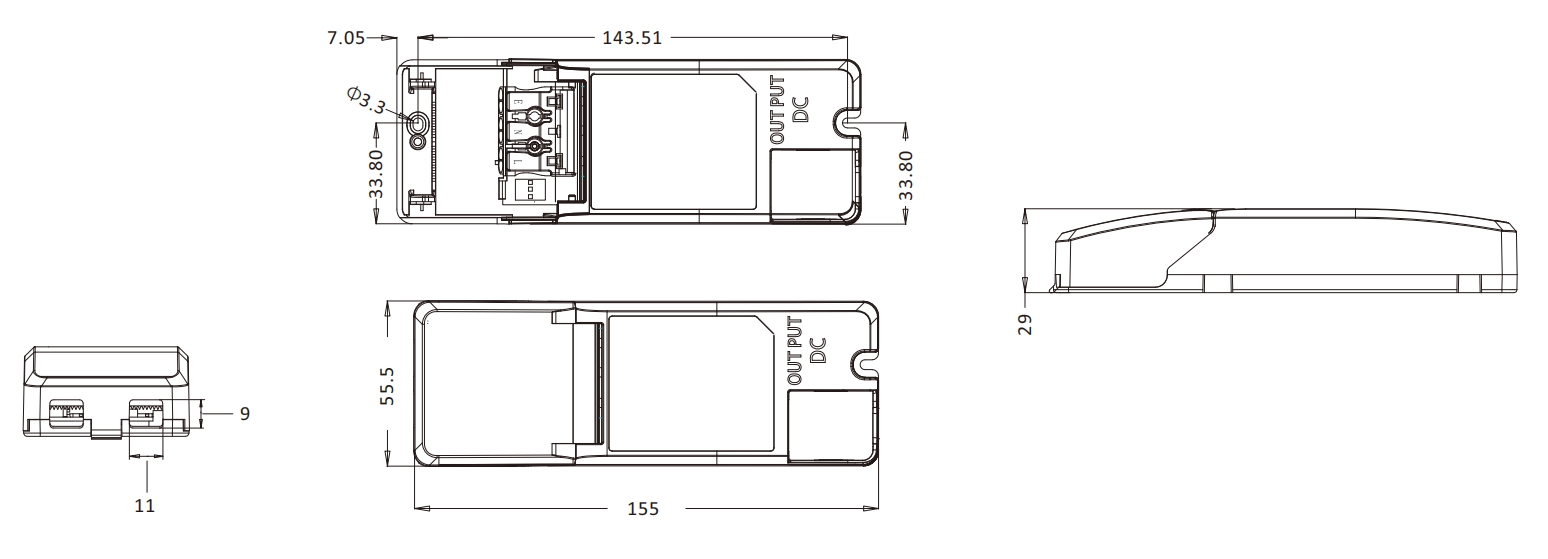

Model:AGT-FL711/AGT-FL710
Unit:mm

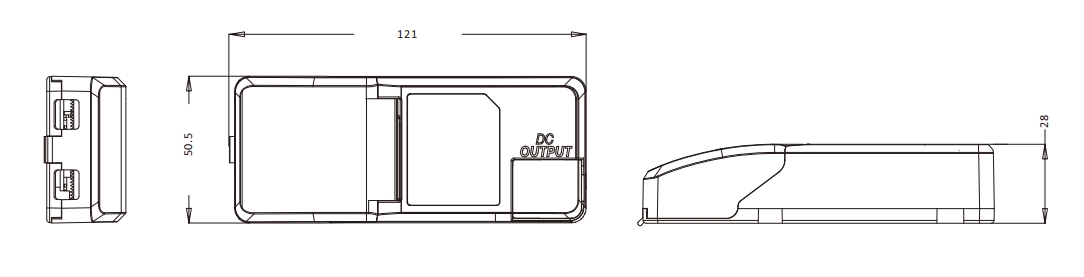

Model:AGT-FL613G..
Unit:mm

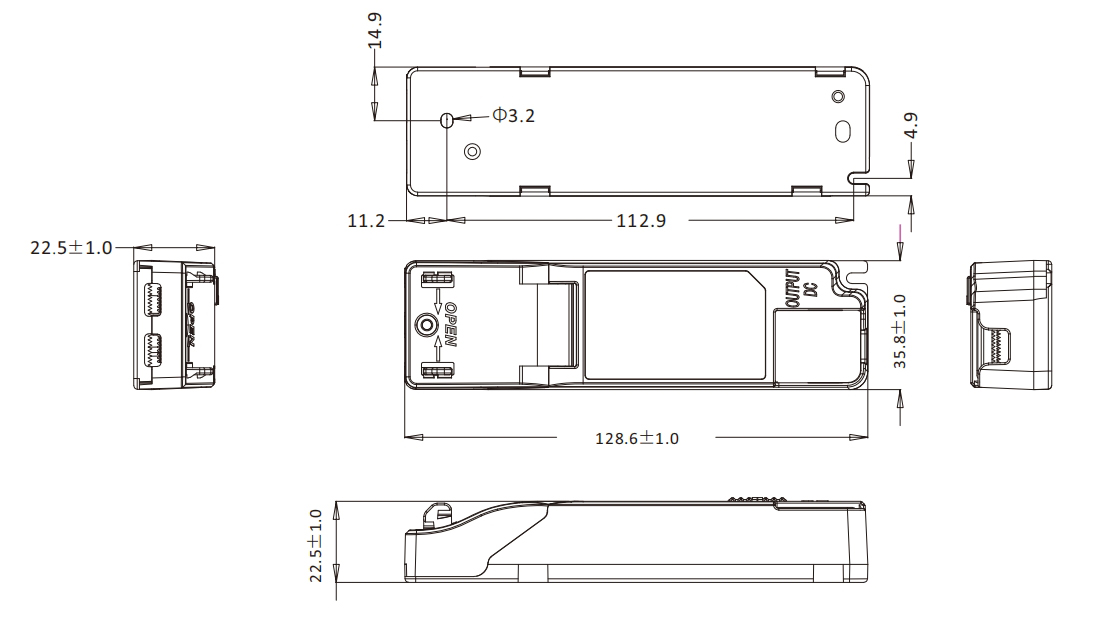

Model:AGT-FL101/AGT-FL100
Unit:mm
