Parameters
-220-240V
-Selectable current:1.05-1.2A
-25-40V
-PF≥0.9@230V
-EFF≥88%@230V
-Isolated type,NO flicker,constant current design
-5 years warranty
Applications
-Commercial luminaries
-Office luminaries
-LED panel light
-LED down light
-LED linear light
-LED batten light
Model list
| Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| B.T511S-XXXX | 15-60W | 200-240V | 25-40V | 600-1500mA | 257*31*23mm | >0.9 | ≥88% |
Note: XXXX indicates the output current
About

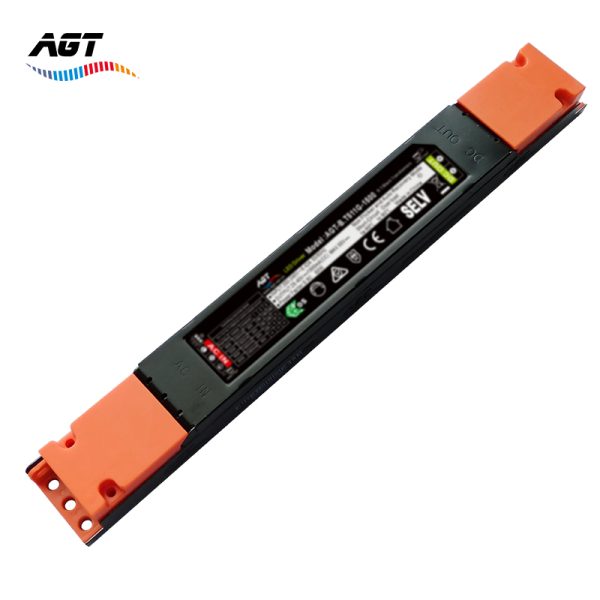

Black transformer, the first combined design of iron shell Led driver plus plastic end cap. Realized the free conversion of Class 1 and Class 2 Led driver. Breaking the restriction of the iron shell driver can not be externally placed.

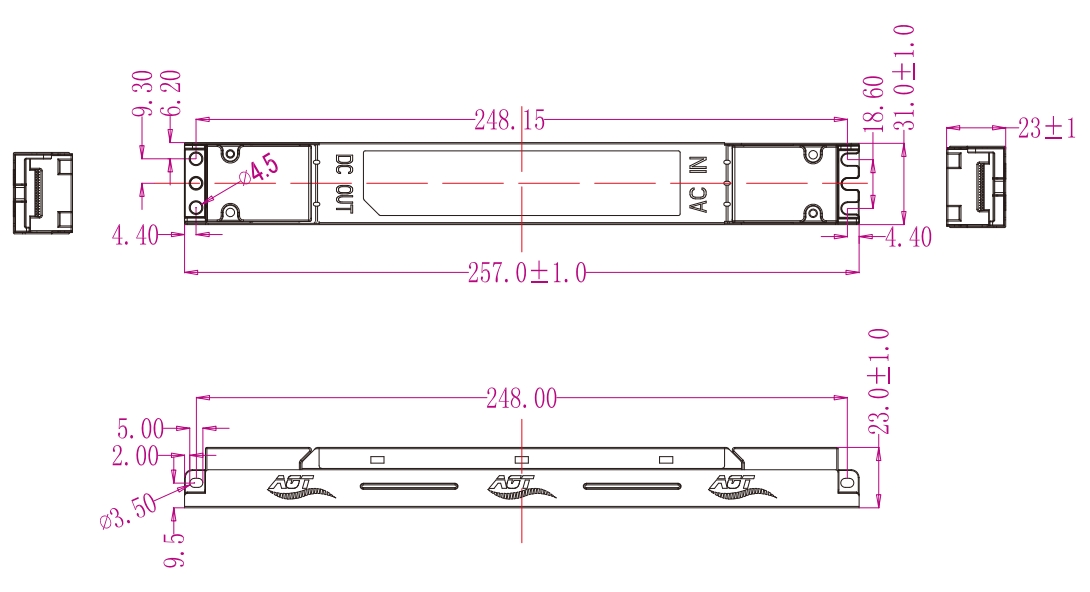

Dimensions
