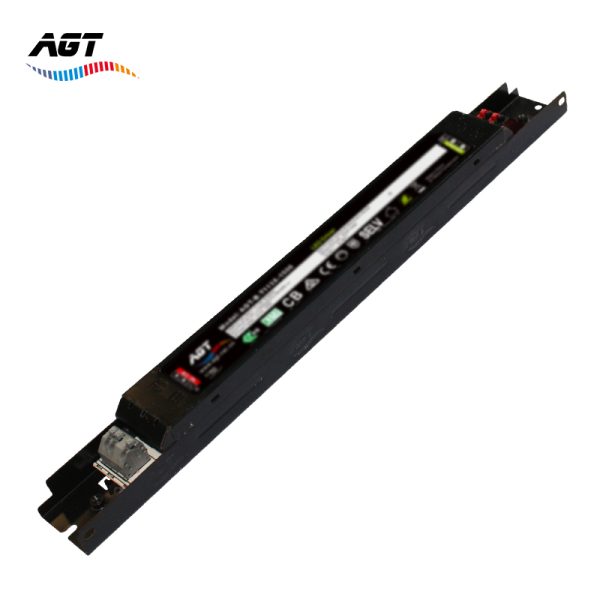

BT-Linear Driver

EU Standard Isolated Flicker-free-2

Parameters

-200-240V

-Selectable current:1.71-1.89A

-25-42V

-PF≥0.9@230V

-EFF≥88%@230V

-Isolated type,NO flicker,constant current design

-5 years warranty

Applications

-Commercial luminaries

-Office luminaries

-LED panel light

-LED down light

-LED linear light

-LED batten light

Model list

Model Power Input voltage Output voltage Output current Dimension PF EFF
B.T113G-1800 76W 200-240V 25-42V 1.8A 317*31*23mm >0.9 ≥88%



About

Black transformer, the first combined design of iron shell Led driver plus plastic end cap. Realized the free conversion of Class 1 and Class 2 Led driver. Breaking the restriction of the iron shell driver can not be externally placed.

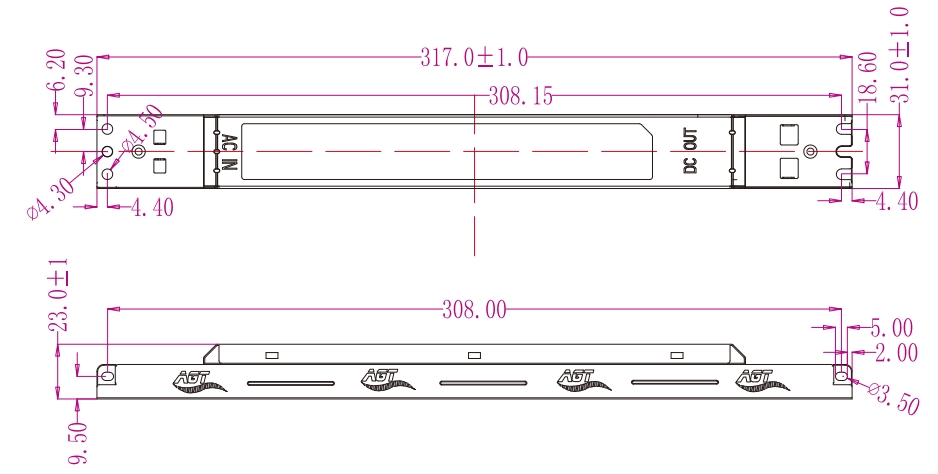

Dimensions
