Parameters
-200-240V
-Selectable current:0.9-1.2A
-20-40V
-PF≥0.9@230V
-EFF≥88%@230V
-Isolated type,NO flicker,constant current design
-5 years warranty
Applications
-Commercial luminaries
-Office luminaries
-LED panel light
-LED down light
-LED linear light
-LED batten light
Model list
| Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| B.T111-XXXX | 10-55W | 200-240V | 20-40V | 500-1200mA | 317*31*23 mm | >0.9 | ≥88% |
Note: XXXX indicates the output current
About
Black transformer, the first combined design of iron shell Led driver plus plastic end cap. Realized the free conversion of Class 1 and Class 2 Led driver. Breaking the restriction of the iron shell driver can not be externally placed.

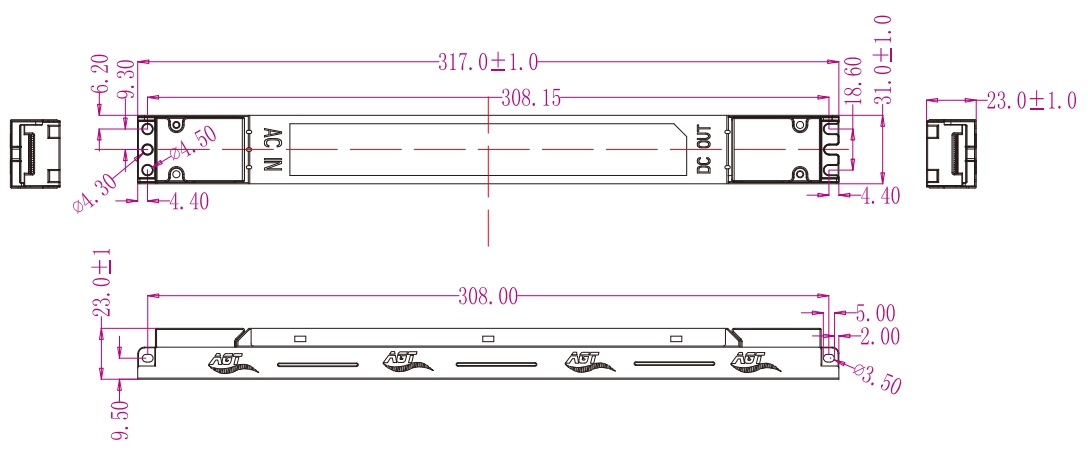

Dimensions
