Parameters
-185-265VDC input
-220-240VAC input
-Selectable current:0.55-0.7A
-36-45VDC output
-PF>0.9@230Vac
-EFF>80%@230Vac
-Isolated type,NO flicker,constant current design
-5 years warranty
Applications
-Commercial luminaries
-Office luminaries
-LED panel light
-LED down light
-LED linear light
-LED batten light
Model list
| Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| I781g-XXXX | 2-28.5W | 220-240V | 25-40V | 100-600mA | L100.5*W35.5*H22.5 mm | >0.9 | ≥80% |
Note: XXXX represents the output current
About
AGT provides power products covering six subcategories for commercial lighting, including EU standard narrow voltage non-flicker, EU standard wide voltage non-flicker, CCT adjustable dip switch, dimmable, soft start, and non-isolation, in order to offer users a diversified range of functions and service experiences.

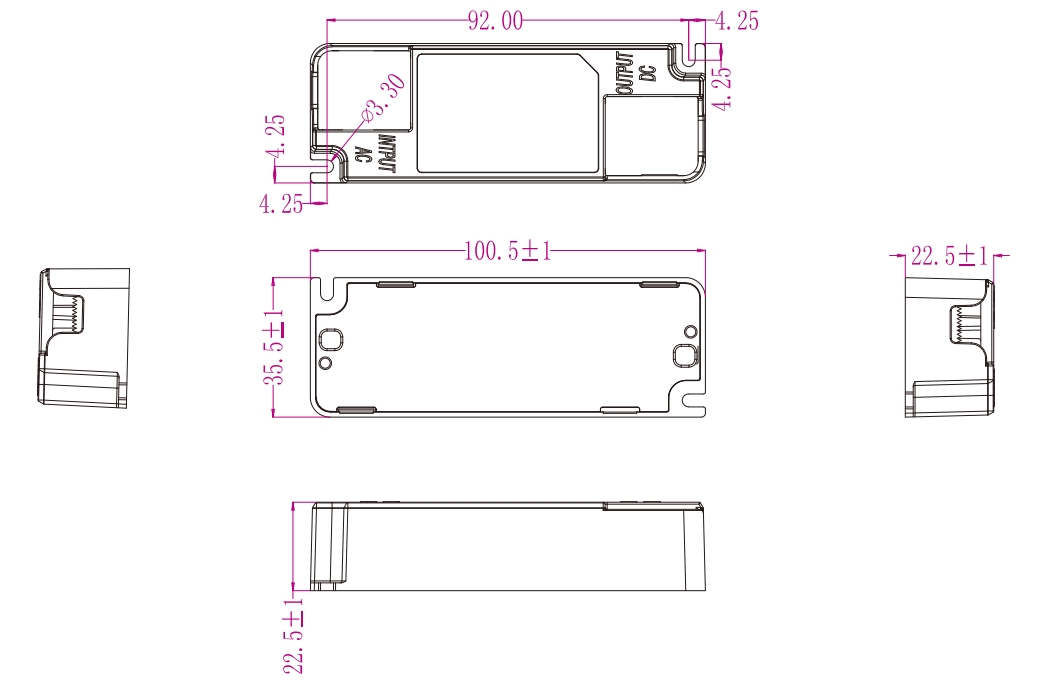

Dimensions
