Parameters
-220-240V
-Selectable current:1.14-1.26A
-25-40V
-PF>0.9@230Vac
-EFF>88%@230Vac
-Isolated type,NO flicker,constant current design
-5 years warranty
Applications
-Commercial luminaries
-Office luminaries
-LED panel light
-LED down light
-LED linear light
-LED batten light
Model list
| Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| I731G-XXXX | 13-55W | 220-240V | 25-40V | 500-1200mA | L125*W40*H27 mm | >0.9 | ≥88% |
Note: XXXX represents the output current
About
AGT provides power products covering six subcategories for commercial lighting, including EU standard narrow voltage non-flicker, EU standard wide voltage non-flicker, CCT adjustable dip switch, dimmable, soft start, and non-isolation, in order to offer users a diversified range of functions and service experiences.

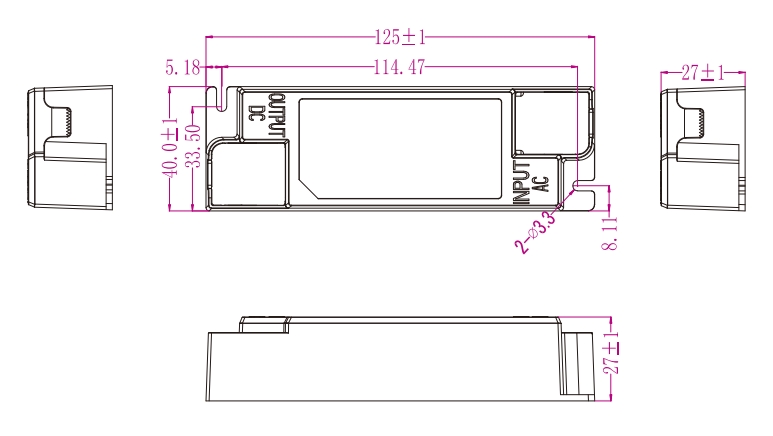

Dimensions
