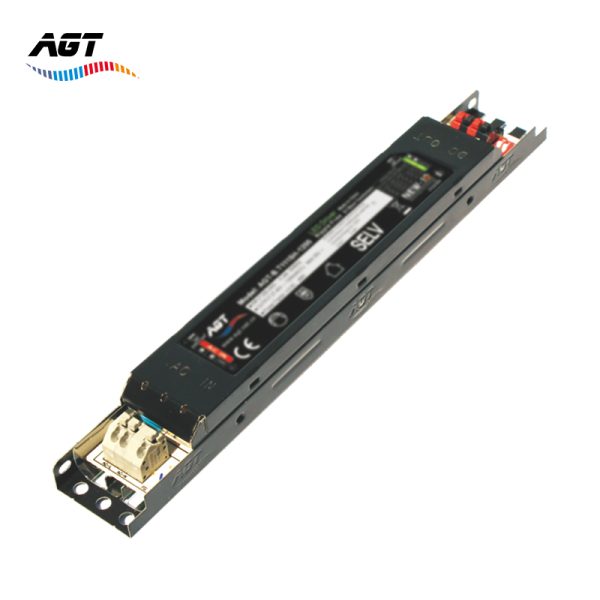

BT-Linear Driver

EU Standard Dimmable-1

Parameters

-200-240V

-Selectable current:0.9-1.0A

-27-40V

-PF>0.95@230Vac

-EFF≥88%@230Vac

-Three in one dimming(0-10V&Resistance&PWM)

-Isolated type,No flicker,constant current design

-5 years warranty

Applications

-Commercial luminaries

-Office luminaries

-LED panel light

-LED down light

-LED linear light

-LED batten light

Model list

Model Power Input voltage Output voltage Output current Dimension PF EFF
B.T1115H-XXXX 15-55W 200-240V 27-40V 300-1200mA L227*W31*20.5mm >0.95 ≥88%

Note: XXXX indicates the output current



About

Black transformer, the first combined design of iron shell Led driver plus plastic end cap. Realized the free conversion of Class 1 and Class 2 Led driver. Breaking the restriction of the iron shell driver can not be externally placed.

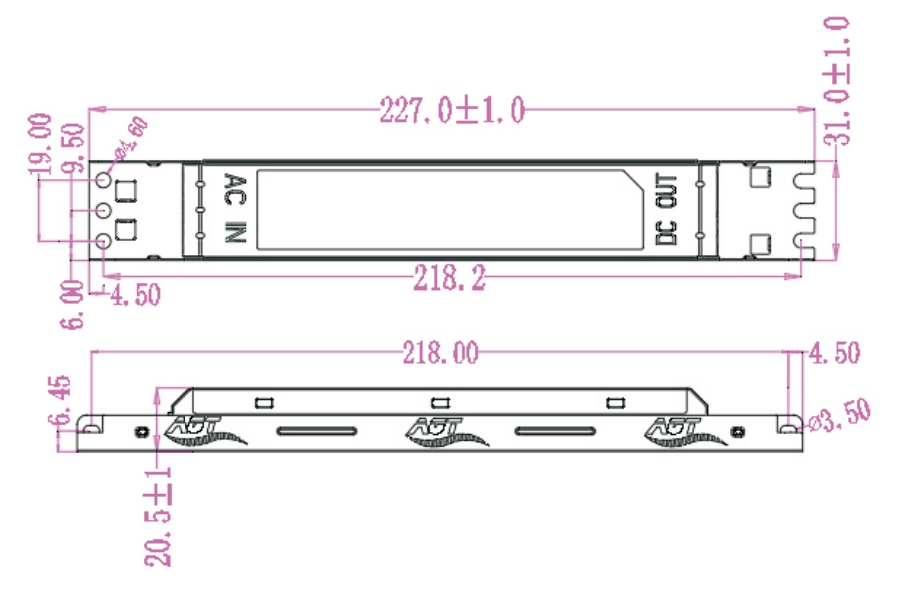

Dimensions
