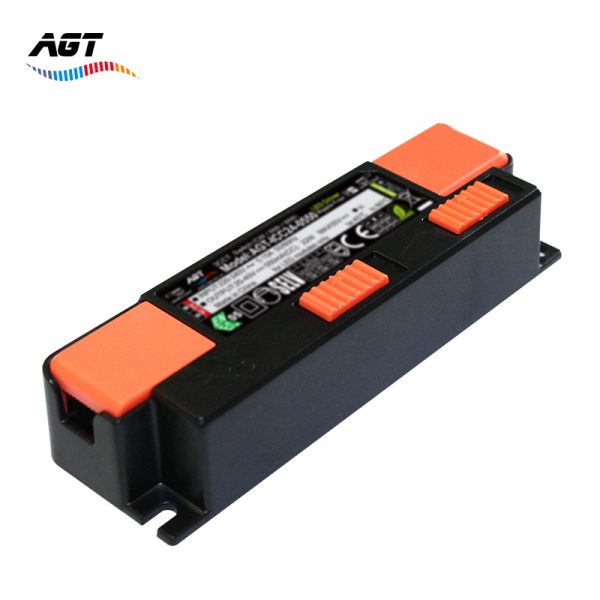

Commercial Lighting Driver

Dip Switch CCT Adjustable-3

Parameters

-220-240V

-Selectable current:0.3-0.6A

-25-40V

-PF>0.9@230Vac

-EFF>85%@230Vac

-Isolated type,NO flicker,constant current design

-5 years warranty

Applications

-Commercial luminaries

-Office luminaries

-LED panel light

-LED down light

-LED linear light

-LED batten light

Model list

Model Power Input voltage Output voltage Output current Dimension PF EFF
ICC15-XXXX 4-14.5W 200-240V 20-40V 200-300mA L110.5*W35.5*H23.5 mm >0.9 ≥85%
ICC24-XXXX 5-28.5W 220-240V 25-40V 200-600mA L110.5*W35.5*H23.5 mm >0.9 ≥85%

Note: XXXX represents the output current



About

AGT provides power products covering six subcategories for commercial lighting, including EU standard narrow voltage non-flicker, EU standard wide voltage non-flicker, CCT adjustable dip switch, dimmable, soft start, and non-isolation, in order to offer users a diversified range of functions and service experiences.

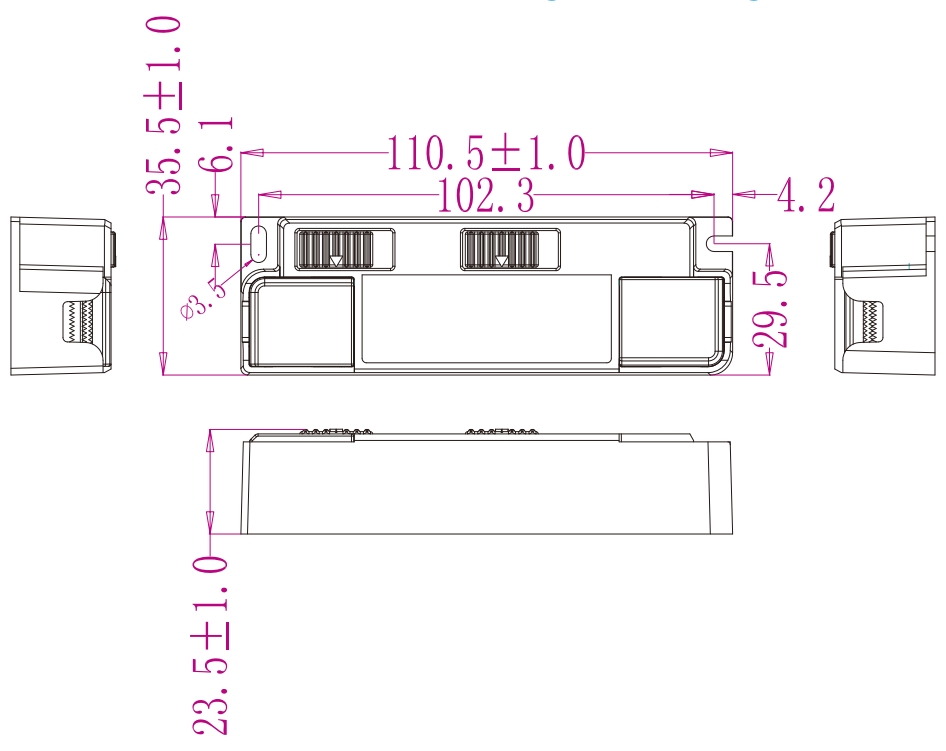

Dimensions
