Parameters
-220-240V
-Selectable current:0.75-1.05A
-25-38V
-PF>0.9@230Vac
-EFF>88%@230Vac
-Isolated type,NO flicker,constant current design
-5 years warranty
Applications
-Commercial luminaries
-Office luminaries
-LED panel light
-LED down light
-LED linear light
-LED batten light
Model list
Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
I786DS-XXXX | 12-45W | 220-240V | 25-38V | 500-1050mA | L100.5*W46.5*H27 mm | >0.9 | ≥88% |
I786DS-XXXX | 12-45W | 220-240V | 25-40V | 500-1000mA | L100.5*W46.5*H27 mm | >0.9 | ≥88% |
Note: XXXX represents the output current
About
AGT provides power products covering six subcategories for commercial lighting, including EU standard narrow voltage non-flicker, EU standard wide voltage non-flicker, CCT adjustable dip switch, dimmable, soft start, and non-isolation, in order to offer users a diversified range of functions and service experiences.

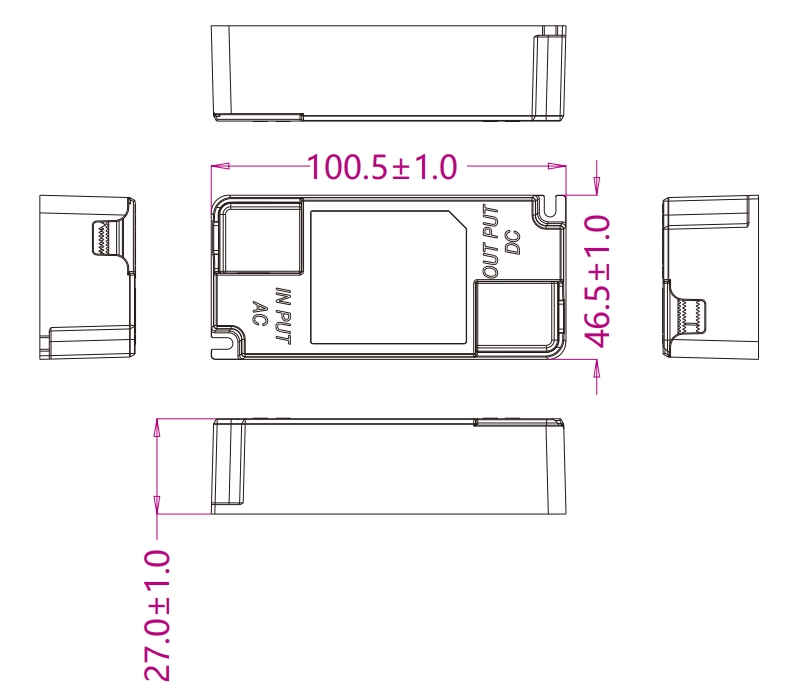

Dimensions
