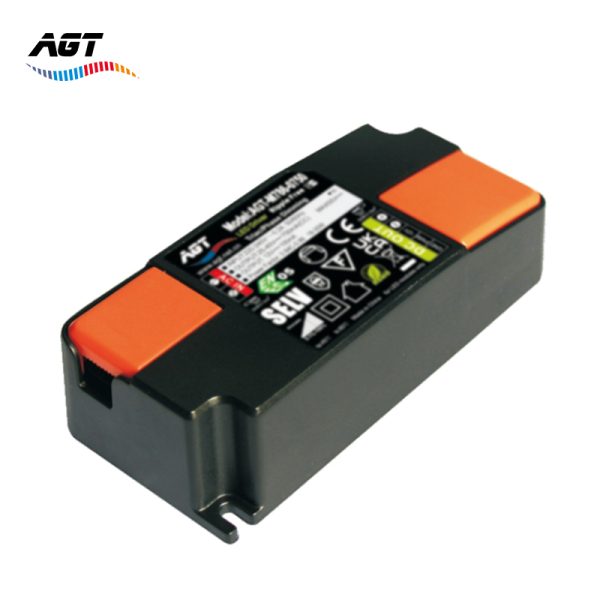

Commercial Lighting Driver

Dimmable-2

Parameters

-220-240V

-Selectable current:0.712-0.788A

-External 12V power supply intelligent module

-Compatible with infrared,Bluetooth,graffiti and ZigBee module dimming

-PF>0.9@230V

-EFF≥86%@230V

-Isolated type,NO flicker,constant current design

Applications

-Commercial luminaries

-Office luminaries

-LED panel light

-LED down light

-LED linear light

-LED batten light

Model list

Model Power Input voltage Output voltage Output current Dimension PF EFF
M786-XXXX 10-28.5W 220-240V 25-38V 400-750mA L100.7*W46.6*H27 mm >0.9 ≥86%

Note: XXXX represents the output current



About

AGT provides power products covering six subcategories for commercial lighting, including EU standard narrow voltage non-flicker, EU standard wide voltage non-flicker, CCT adjustable dip switch, dimmable, soft start, and non-isolation, in order to offer users a diversified range of functions and service experiences.

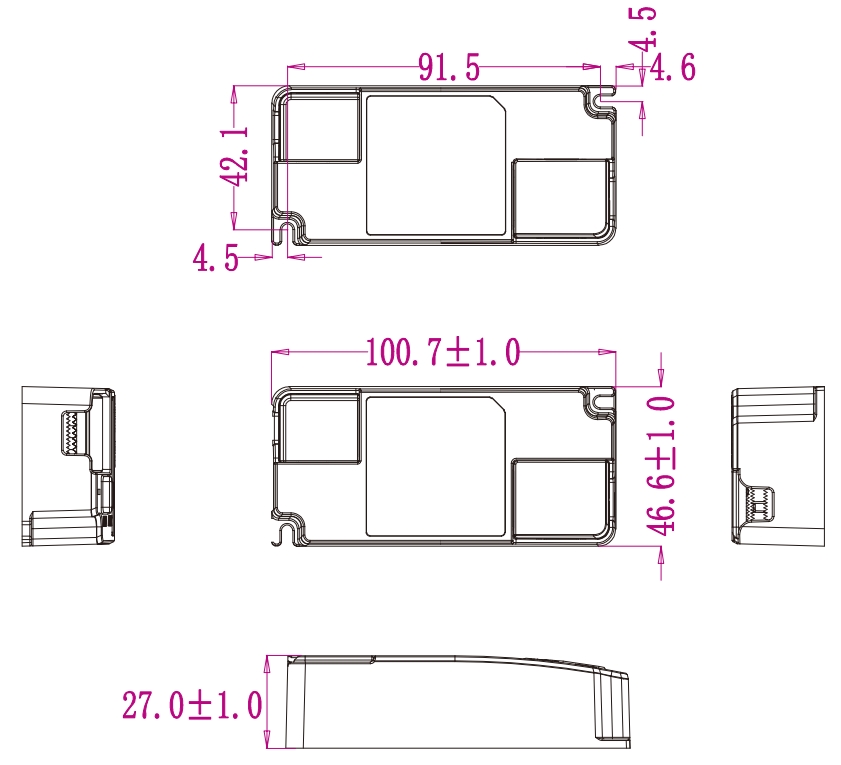

Dimensions
