Parameters
-200-240V
-Selectable current:1.0-1.2A
-27-40V
-PF>0.9@230V
-EFF≥88%@230V
-0-10V dimming
-Three in one dimming(0-10V&Resistance&PWM)
-Isolated type,NO flicker,constant current design
-5 years warranty
Applications
-Commercial luminaries
-Office luminaries
-LED panel light
-LED down light
-LED linear light
-LED batten light
Model list
| Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |
| I758.-XXXX | 20-57W | 200-240V | 27-40V | 750-1250mA | L113*W66.8*H30 mm | >0.9 | ≥88% |
| I759.-XXXX | 8-48W | 200-240V | 27-40V | 300-1050mA | L113*W66.8*H30 mm | >0.9 | ≥88% |
Note: XXXX represents the output current
About
AGT provides power products covering six subcategories for commercial lighting, including EU standard narrow voltage non-flicker, EU standard wide voltage non-flicker, CCT adjustable dip switch, dimmable, soft start, and non-isolation, in order to offer users a diversified range of functions and service experiences.

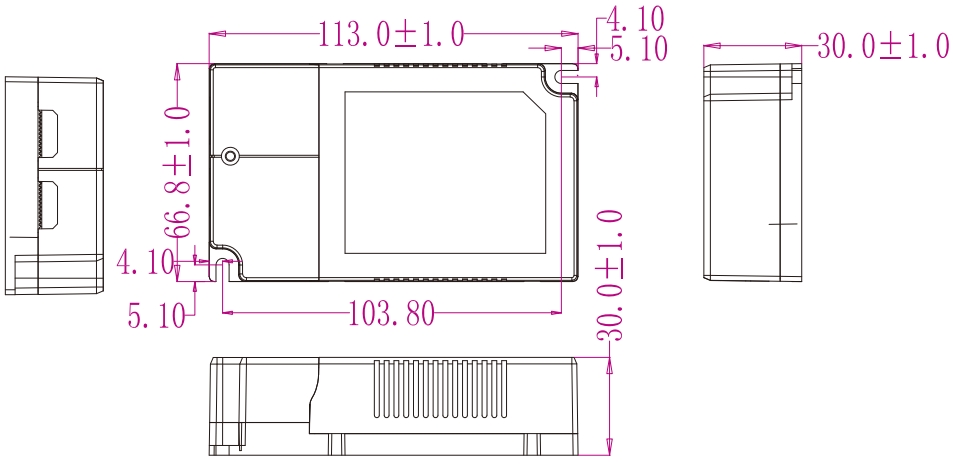

Dimensions
