Parameters
-220-240V
-Selectable current: 0.57-0.63A
-2-4V
-PF>0.5@230V
-EFF≥71%@230V
-Slow start,HUMAN8 Patented technology,Intelligent breathing mode
-Isolated type,NO flicker,constant current design
Applications
-Commercial luminaries
-Office luminaries
-LED panel light
-LED down light
-LED linear light
-LED batten light
Model list
Model | Power | Input voltage | Output voltage | Output current | Dimension | PF | EFF |

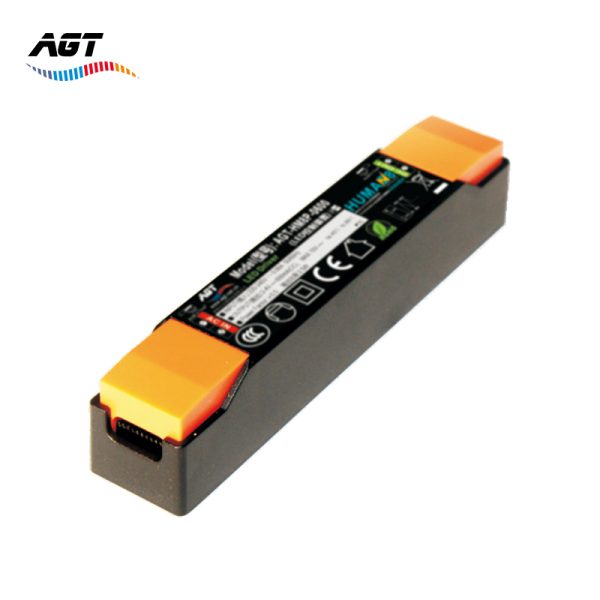

M1-HP8-XXXX | 1-3.0W | 220-240V | 2-4V | 700mA | L108*W20.5*H21.2 mm | >0.5 | ≥71% |
M1-HP8-XXXX | 1-2.5W | 220-240V | 2-4V | 600mA | L108*W20.5*H21.2 mm | >0.5 | ≥71% |
M1-HP8-XXXX | 3-7W | 220-240V | 7-15V | 450mA | L108*W20.5*H21.2 mm | >0.5 | ≥71% |
M1-HP8-XXXX | 2-6W | 220-240V | 7-20V | 300mA | L108*W20.5*H21.2 mm | >0.5 | ≥71% |
M1-HP8-XXXX | 5-7W | 220-240V | 25-35V | 200mA | L108*W20.5*H21.2 mm | >0.5 | ≥71% |
M1-HP8-XXXX | 4-7.5W | 220-240V | 25-40V | 180mA | L108*W20.5*H21.2 mm | >0.5 | ≥71% |
M1-HP8-XXXX | 4-6.5W | 220-240V | 25-40V | 160mA | L108*W20.5*H21.2 mm | >0.5 | ≥71% |
M1-HP8-XXXX | 3-5.0W | 220-240V | 25-40V | 120mA | L108*W20.5*H21.2 mm | >0.5 | ≥71% |
Note: XXXX represents the output current
About
AGT provides power products covering six subcategories for commercial lighting, including EU standard narrow voltage non-flicker, EU standard wide voltage non-flicker, CCT adjustable dip switch, dimmable, soft start, and non-isolation, in order to offer users a diversified range of functions and service experiences.
Dimensions
